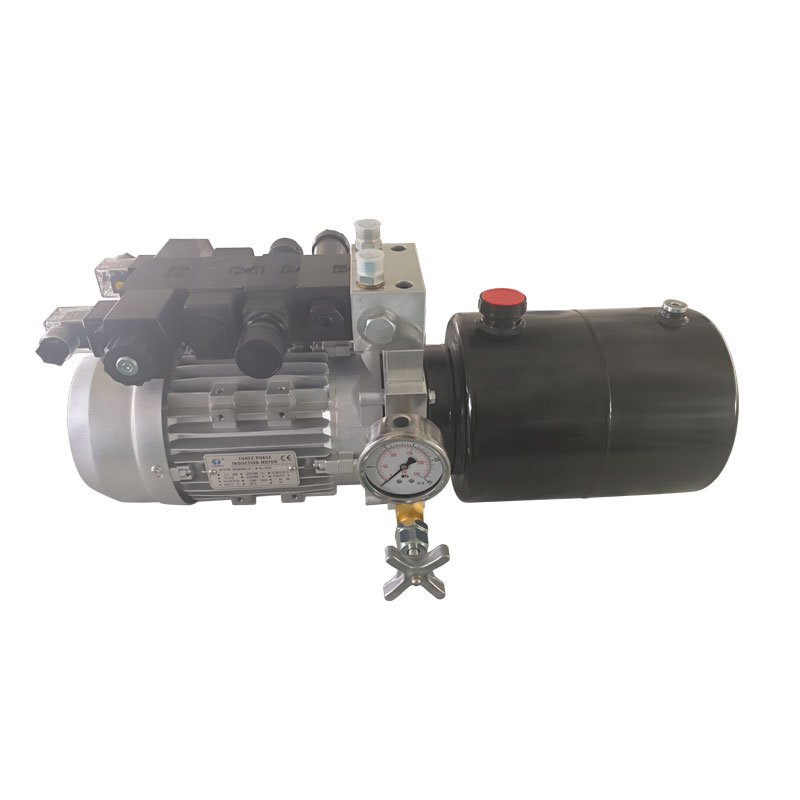

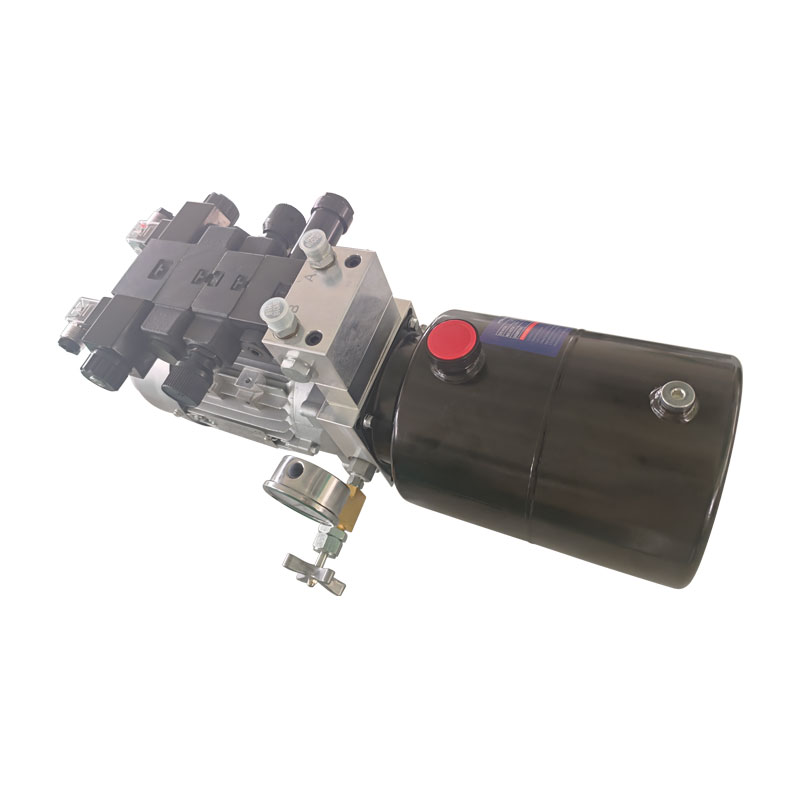

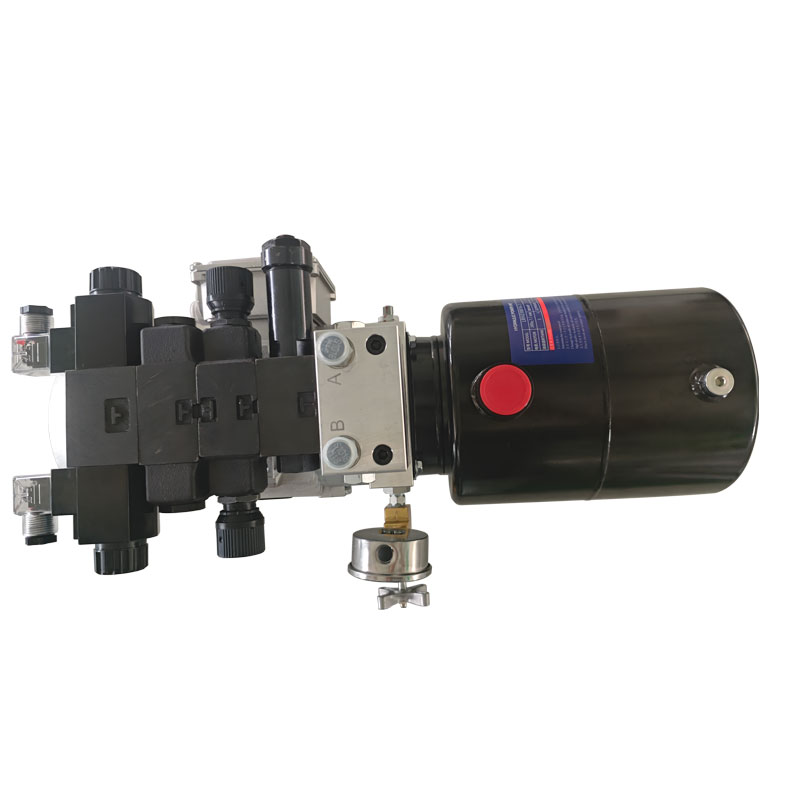

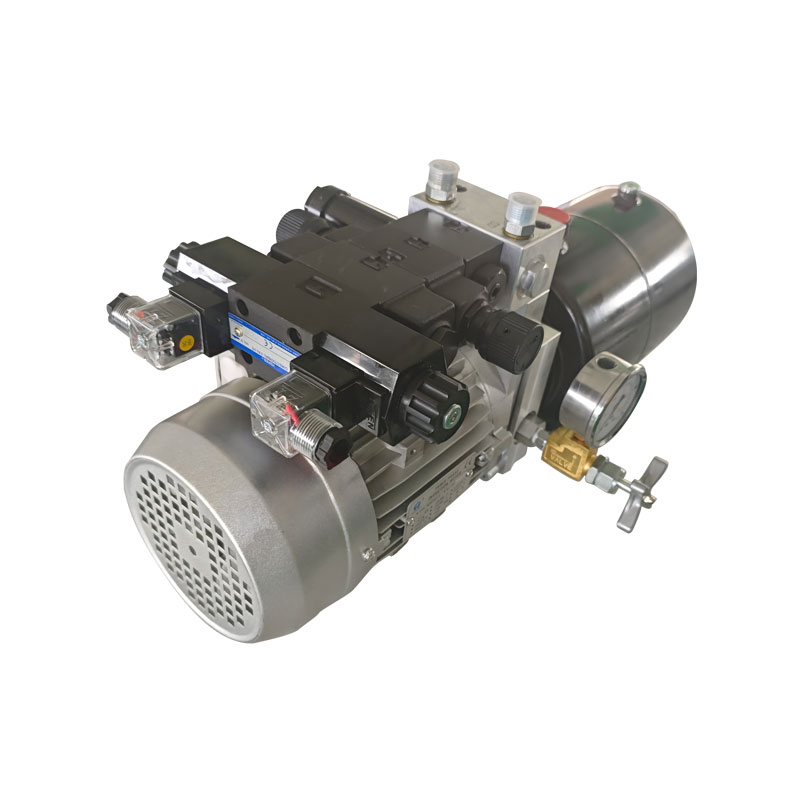

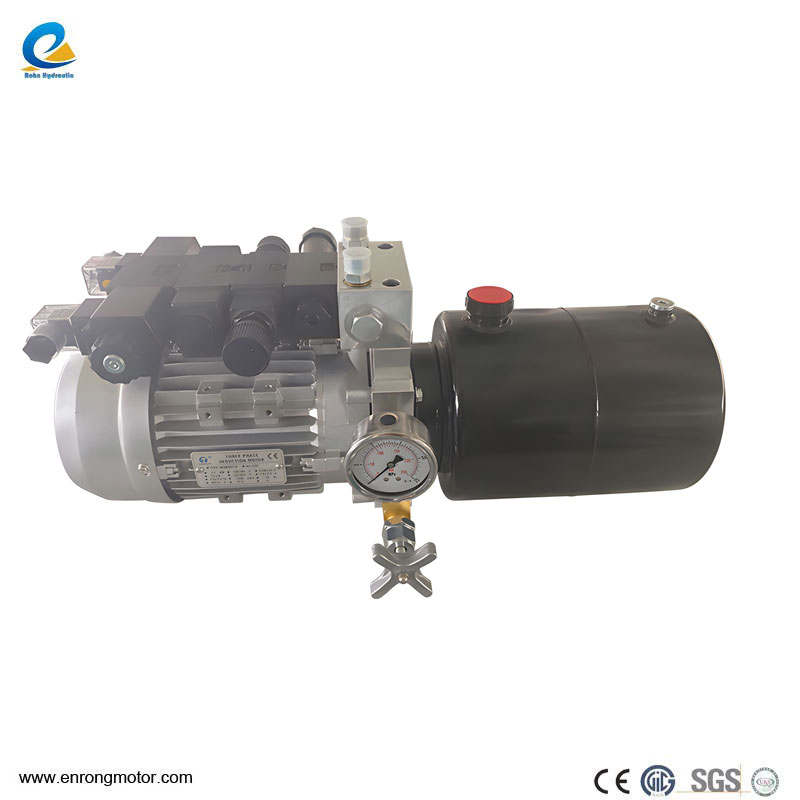

380V 1.1KW 5L Double Acting Unit

The 380V 1.1KW 5L double-acting hydraulic power unit is a highly versatile and reliable system designed for industrial and mobile applications where precision, power, and efficiency are required. This unit is equipped with a powerful electric motor, a well-engineered hydraulic system, and advanced control features that make it suitable for a wide range of hydraulic operations. Its double-acting design, combined with robust construction, ensures reliable performance in demanding conditions. Below is a detailed overview of the performance, key parameters, and features that set this hydraulic power unit apart.

Performance and Power Output

At the core of this hydraulic power unit is its 380V motor, which delivers 1.1 kW of power. This motor is specifically designed for industrial environments where stable and reliable power is essential. The 1.1 kW motor provides ample power for various hydraulic applications, making the unit capable of handling both light and heavy-duty tasks efficiently. Whether you need to lift, lower, push, or pull loads, the power unit ensures smooth and controlled hydraulic movements.

The system operates on a double-acting hydraulic circuit, meaning it provides pressurized hydraulic fluid in both directions—extending and retracting the cylinder. This bi-directional capability allows for greater control and precision in applications that require movements in both directions. The hydraulic power unit is designed to offer reliable, repeatable performance, even under continuous operation or in harsh environments, making it ideal for industrial settings where uptime and performance are critical.

Key Features

1. High-Efficiency Electric Motor

The hydraulic power unit is powered by a 380V electric motor that offers both efficiency and durability. The motor is engineered to provide consistent performance, even in demanding industrial applications. It delivers high torque at low speeds, ensuring smooth operation of the hydraulic system. The motor’s design also ensures that it runs efficiently, minimizing energy consumption and reducing operational costs over time.

2. Double-Acting Hydraulic System

A key feature of this unit is its double-acting hydraulic system, which allows for hydraulic pressure to be applied in both directions. This capability is essential for applications where bi-directional force is required, such as lifting and lowering heavy loads, operating hydraulic presses, or powering industrial machinery. The double-acting design also ensures better control over hydraulic movements, leading to smoother and more precise operations.

3. Optimized Hydraulic Flow Rate

The unit's hydraulic pump is designed to provide an optimal flow rate, ensuring efficient hydraulic fluid circulation throughout the system. This flow rate is tailored to match the power output of the motor and the demands of the hydraulic application, allowing for quick response times and efficient operation. The pump’s design ensures that the hydraulic system operates at peak efficiency, minimizing energy loss and maximizing performance.

4. 5-Liter Hydraulic Reservoir

The hydraulic power unit features a 5-liter hydraulic oil reservoir, which provides sufficient capacity for storing hydraulic fluid. This reservoir is designed to minimize fluid turbulence, which helps in maintaining the hydraulic oil’s temperature and viscosity. The size of the reservoir is optimized to support the unit’s flow rate and pressure requirements, ensuring that the system can operate continuously without overheating or degrading fluid quality. The reservoir also features a user-friendly design for easy maintenance and refilling.

5. Horizontal Mounting Design

This hydraulic power unit is designed for horizontal mounting, making it adaptable to a variety of installation scenarios. The horizontal mounting configuration ensures stability and reduces the chances of fluid leakage or pressure imbalances that could occur in other orientations. This design is particularly advantageous in mobile applications or installations where space is limited, as it allows the unit to be securely installed without taking up excessive vertical space.

6. Precision Pump Displacement

The hydraulic pump is engineered with a precise displacement capacity, ensuring that the unit delivers the right amount of hydraulic fluid with each stroke. This precise flow control is critical in applications requiring fine-tuned movements, such as in hydraulic presses, cranes, or material handling equipment. The pump’s displacement is designed to match the motor’s power output, ensuring a smooth and consistent flow of hydraulic fluid, which leads to improved system efficiency and reduced wear on components.

7. Pressure Management

The hydraulic power unit is capable of delivering a high maximum pressure, which is essential for heavy-duty applications that require significant force. The system is designed with safety and performance in mind, featuring pressure relief valves to ensure that the hydraulic system does not exceed safe operating limits. This pressure management system protects both the power unit and the equipment it powers from damage due to overpressure, ensuring reliable and safe operation.

8. Durable Construction

Built with high-quality materials, this hydraulic power unit is engineered to withstand the rigors of industrial use. Its construction is designed to resist wear and tear, ensuring that the unit remains functional over extended periods of operation. The motor housing, hydraulic components, and reservoir are all designed to resist corrosion, moisture, and other environmental factors, making this unit suitable for both indoor and outdoor use.

9. Easy Maintenance and Accessibility

Maintenance is a key consideration for any hydraulic power system, and this unit is designed with ease of access in mind. The components, including the motor, pump, and reservoir, are all easily accessible for routine maintenance, such as oil changes, filter replacements, and system inspections. This reduces downtime and ensures that the unit can be serviced quickly and efficiently, keeping operational disruptions to a minimum.

Applications

The 380V 1.1KW 5L double-acting hydraulic power unit is versatile and can be applied across a variety of industries and tasks. Its high performance, reliability, and ease of use make it ideal for the following applications:

1. Industrial Machinery

This hydraulic power unit is perfectly suited for powering industrial machinery that requires precise control and significant force. Applications such as hydraulic presses, cutting machines, and stamping equipment can benefit from the unit’s double-acting hydraulic system, which allows for smooth and controlled movements in both directions. The unit’s robust motor and pump ensure that even the most demanding tasks can be completed efficiently.

2. Lifting and Material Handling

In industries where lifting and moving heavy loads is required, such as construction, manufacturing, and logistics, this hydraulic power unit provides the necessary force and precision. Whether operating a crane, lift table, or conveyor system, the double-acting hydraulic system ensures that loads can be raised and lowered smoothly and safely. The unit’s ability to provide pressure in both directions allows for controlled movement, reducing the risk of damage to materials or equipment.

3. Agricultural Equipment

Agricultural machinery often requires hydraulic power to operate implements such as plows, seeders, and harvesters. The durability and high-pressure capability of this hydraulic power unit make it ideal for agricultural applications. Its double-acting system allows for better control of implements, improving the efficiency and precision of farming operations. The unit’s robust construction also ensures that it can withstand the harsh conditions often encountered in agricultural settings.

4. Mobile Equipment

Mobile equipment, such as dump trucks, tow trucks, and trailers, often require hydraulic systems to operate lifting mechanisms and other features. This hydraulic power unit’s compact size, horizontal mounting configuration, and powerful motor make it an excellent choice for mobile applications. Its ability to provide bi-directional hydraulic pressure ensures that the equipment operates smoothly, whether lifting a truck bed, retracting a tow arm, or operating a hydraulic winch.

5. Marine Applications

Hydraulic systems are commonly used in marine environments for tasks such as operating winches, steering systems, and lifting equipment. This hydraulic power unit’s corrosion-resistant construction and high-performance motor make it suitable for marine applications. Its double-acting system ensures precise control, which is crucial when operating machinery in environments where safety and reliability are paramount.

6. Automotive Applications

In automotive repair and maintenance, hydraulic systems are often used to operate lifts, jacks, and other tools. This power unit’s double-acting capability makes it ideal for use in vehicle lifts and other equipment that requires controlled movement in both directions. Its compact design and robust performance ensure that it can handle the demands of an automotive workshop.

Safety Features

Safety is a critical consideration in hydraulic systems, and this hydraulic power unit is equipped with several safety features to ensure reliable and safe operation. The pressure relief valves are designed to protect the system from overpressure, preventing damage to both the unit and the equipment it powers. The motor is also protected by thermal overload safeguards, which automatically shut down the unit if it becomes overheated, preventing damage due to excessive heat.

The wire-controlled system adds another layer of safety, allowing operators to manage the hydraulic system from a safe distance. This is particularly useful in situations where the equipment is located in hazardous areas or where direct operation could pose a risk to the operator.

Conclusion

The 380V 1.1KW 5L double-acting hydraulic power unit is a powerful, efficient, and versatile solution for a wide range of hydraulic applications. Its high-performance motor, precise pump, and robust double-acting hydraulic system make it suitable for industrial machinery, lifting equipment, agricultural tools, mobile systems, and more. With its durable construction, optimized flow rate, and safety features, this hydraulic power unit provides reliable, consistent performance in even the most demanding environments.
