Hydraulic Hoist

Hydraulic hoists are vital tools in various industries, enabling the safe and efficient lifting of heavy loads. Among the different types of hydraulic hoists available, the 8-ton and 10-ton specifications are particularly popular for their robust performance and versatility. This detailed overview will delve into the design, operation, applications, benefits, and maintenance of hydraulic hoists, specifically focusing on the 8T and 10T models.

Introduction to Hydraulic Hoists

1.1 What is a Hydraulic Hoist?

A hydraulic hoist is a lifting device that uses hydraulic pressure to raise and lower heavy objects. It operates on the principle of Pascal’s Law, which states that pressure applied to a confined fluid is transmitted undiminished throughout the fluid. This allows hydraulic hoists to lift heavy loads with minimal manual effort, making them ideal for construction, manufacturing, and warehouse applications.

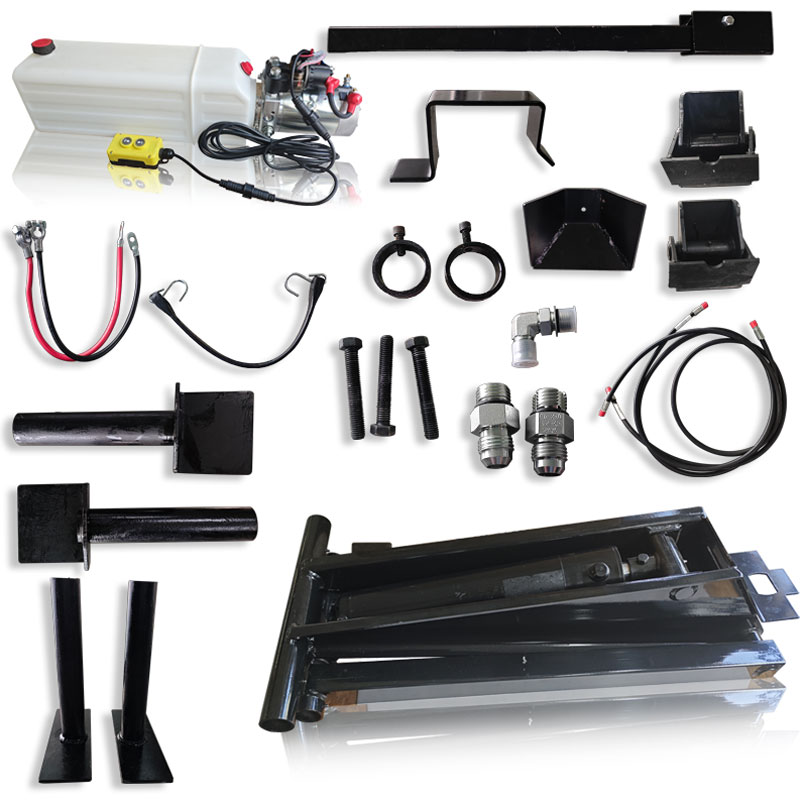

1.2 Key Components of Hydraulic Hoists

Hydraulic hoists consist of several essential components:

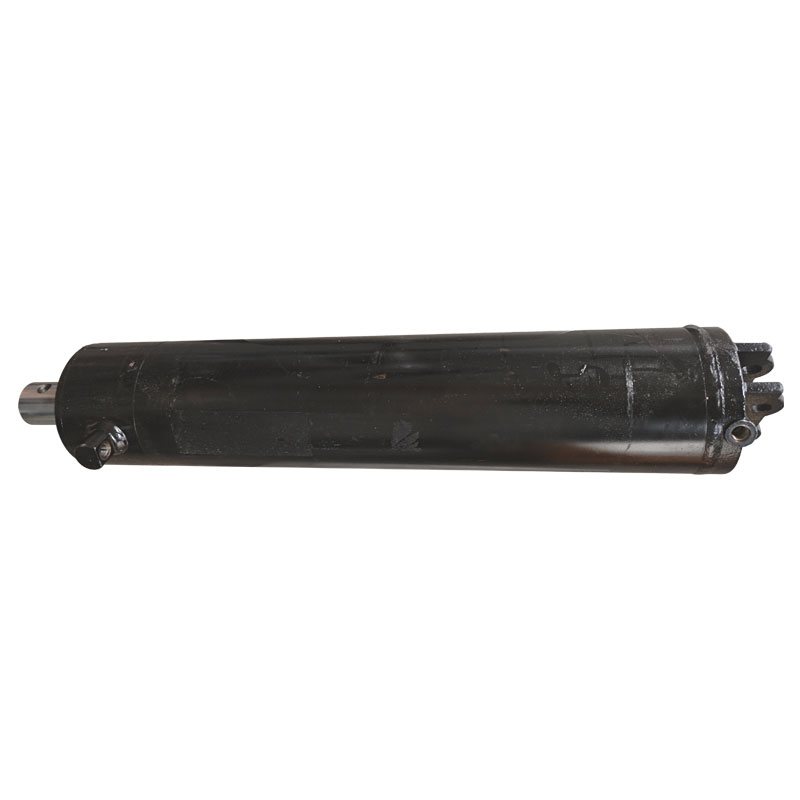

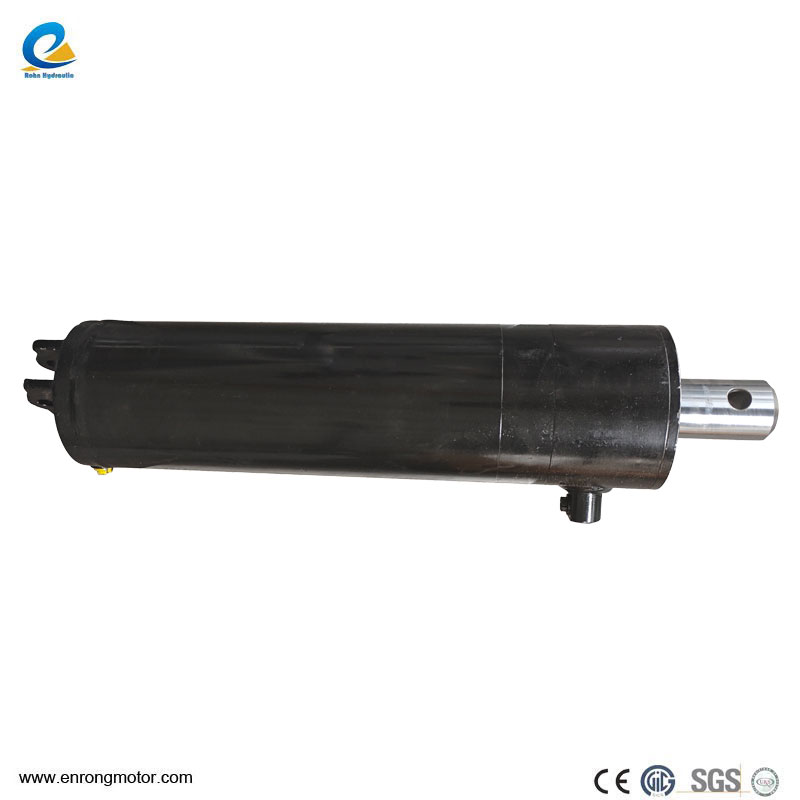

Hydraulic Cylinder: Converts hydraulic pressure into mechanical force.

Pump: Generates the hydraulic pressure required for lifting.

Control Valve: Regulates the flow of hydraulic fluid and controls the lifting and lowering operations.

Lift Chain or Cable: Transfers the lifting force to the load.

Frame or Chassis: Provides structural support and stability during operation.

Specifications of 8T and 10T Hydraulic Hoists

2.1 Load Capacity

The primary difference between the 8T and 10T hydraulic hoists lies in their load capacities. The 8T model can lift loads up to 8 tons, while the 10T model is designed for heavier loads, accommodating up to 10 tons. This increased capacity makes the 10T hoist suitable for more demanding lifting tasks.

2.2 Design and Construction

Both models are constructed using high-strength materials to ensure durability and safety. They often feature:

Robust Steel Frame: Designed to withstand the stresses of heavy lifting.

Corrosion-Resistant Finishes: Enhances longevity, especially in harsh environments.

Safety Features: Such as overload protection and emergency stop mechanisms.

2.3 Dimensions and Weight

While the dimensions may vary slightly between models, both the 8T and 10T hoists are designed to be compact and portable. Their weight typically ranges from 200 kg to 300 kg, depending on the specific design and features.

2.4 Lifting Height

Hydraulic hoists are available with various lifting heights, often ranging from 2 meters to 6 meters. Customers can choose the lifting height that best suits their operational needs.

Operation of Hydraulic Hoists

3.1 How Hydraulic Hoists Work

Hydraulic hoists operate through a simple yet effective mechanism:

Pump Activation: When the operator activates the pump, hydraulic fluid is forced into the cylinder, creating pressure.

Lifting Action: The pressure in the hydraulic cylinder forces the piston upward, which raises the load attached to the lift chain or cable.

Load Control: The operator can control the speed and height of the lift using the control valve, allowing for precise handling of the load.

Lowering the Load: To lower the load, the operator adjusts the control valve to release hydraulic fluid from the cylinder, allowing the piston to descend slowly under controlled pressure.

3.2 Safety Precautions

To ensure safe operation, users should follow these precautions:

Regular Inspections: Check for signs of wear and tear, especially in hydraulic hoses and connections.

Load Limits: Never exceed the maximum load capacity of the hoist.

Proper Training: Ensure that operators are trained in the use and safety procedures of hydraulic hoists.

Emergency Procedures: Familiarize all operators with emergency stop functions and procedures.

Applications of Hydraulic Hoists

4.1 Industrial Uses

Hydraulic hoists are widely used in various industrial applications, including:

Construction Sites: For lifting heavy materials, machinery, and equipment.

Manufacturing Facilities: In assembly lines for moving parts and products.

Warehouse Operations: For loading and unloading goods from trucks or containers.

4.2 Automotive Industry

In the automotive sector, hydraulic hoists play a crucial role in:

Vehicle Maintenance: Raising vehicles for servicing and repairs.

Assembly Lines: Lifting components during manufacturing processes.

4.3 Marine Applications

Hydraulic hoists are essential in marine operations for:

Boat Lifting: Assisting in launching and retrieving boats from the water.

Ship Maintenance: Facilitating repairs and inspections of larger vessels.

4.4 Other Applications

Aviation: For lifting aircraft components during maintenance.

Mining: In heavy equipment operations and material handling.

Advantages of Hydraulic Hoists

5.1 Efficiency

Hydraulic hoists provide quick and efficient lifting solutions, significantly reducing the time and effort required compared to manual lifting.

5.2 Versatility

With different specifications available, including 8T and 10T models, hydraulic hoists can handle a wide range of lifting tasks across various industries.

5.3 Safety

Equipped with safety features like overload protection and emergency stop buttons, hydraulic hoists enhance operational safety, reducing the risk of accidents.

5.4 Minimal Operator Effort

Operators can lift heavy loads with minimal physical exertion, reducing the risk of injuries associated with manual lifting.

Maintenance of Hydraulic Hoists

6.1 Regular Inspections

Regular inspections are crucial for ensuring the safe and efficient operation of hydraulic hoists. Key areas to inspect include:

Hydraulic Fluid Levels: Ensure adequate fluid levels to maintain pressure.

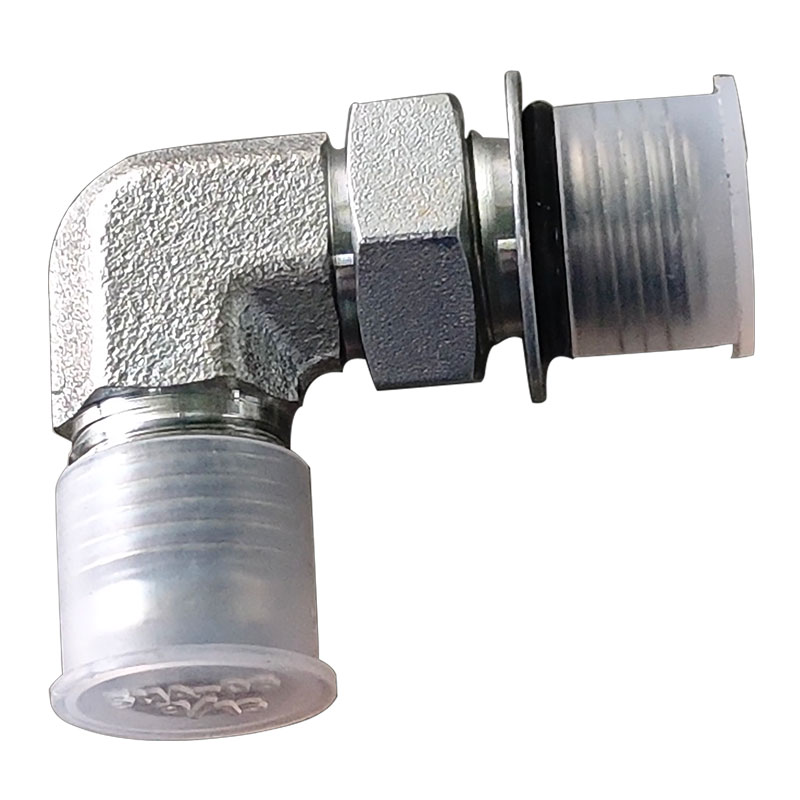

Hoses and Fittings: Check for leaks, cracks, or signs of wear.

Safety Mechanisms: Test overload protection features and emergency stops.

6.2 Hydraulic Fluid Maintenance

Maintaining the hydraulic fluid is essential for optimal performance. Users should:

Change Fluid Regularly: Follow manufacturer recommendations for fluid changes.

Monitor Fluid Quality: Check for contamination or degradation.

6.3 Component Replacement

Worn or damaged components should be replaced promptly to prevent failures. Commonly replaced parts include:

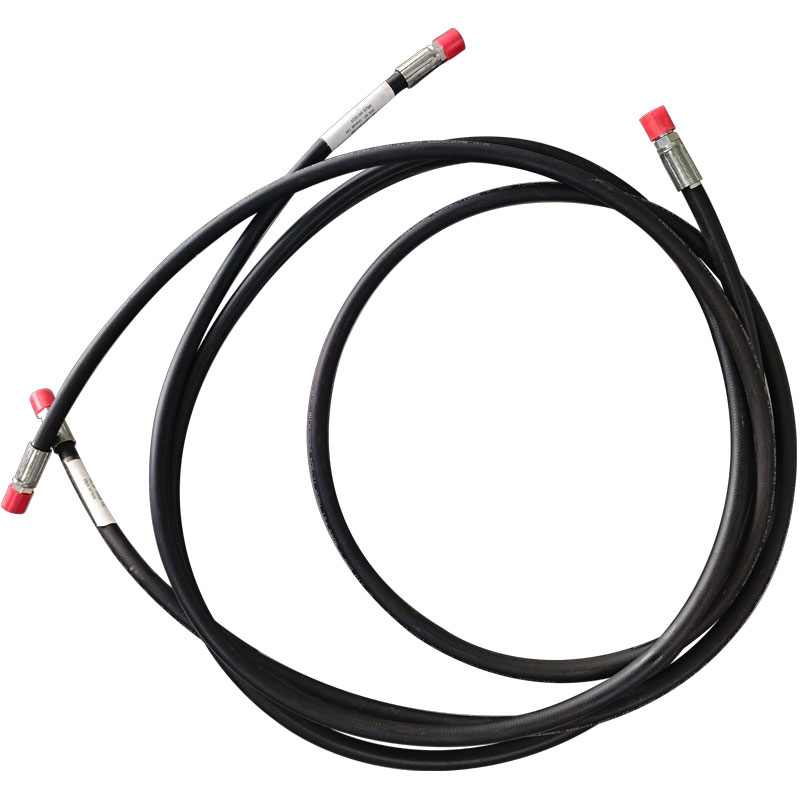

Hydraulic Hoses: Due to wear and exposure to the environment.

Seals and Gaskets: To prevent leaks.

6.4 Professional Servicing

Consider scheduling professional maintenance services periodically to ensure that the hoist remains in excellent working condition.

Conclusion

Hydraulic hoists, specifically the 8-ton and 10-ton models, are indispensable tools in modern industry, offering efficient, safe, and reliable lifting solutions. Their robust construction, ease of use, and versatility make them suitable for a wide range of applications, from construction sites to manufacturing facilities. With proper maintenance and adherence to safety protocols, hydraulic hoists can provide years of dependable service, contributing to increased productivity and safety in the workplace. Whether for heavy lifting in industrial settings or precise applications in automotive and marine industries, investing in a hydraulic hoist is a decision that pays dividends in efficiency and safety.
