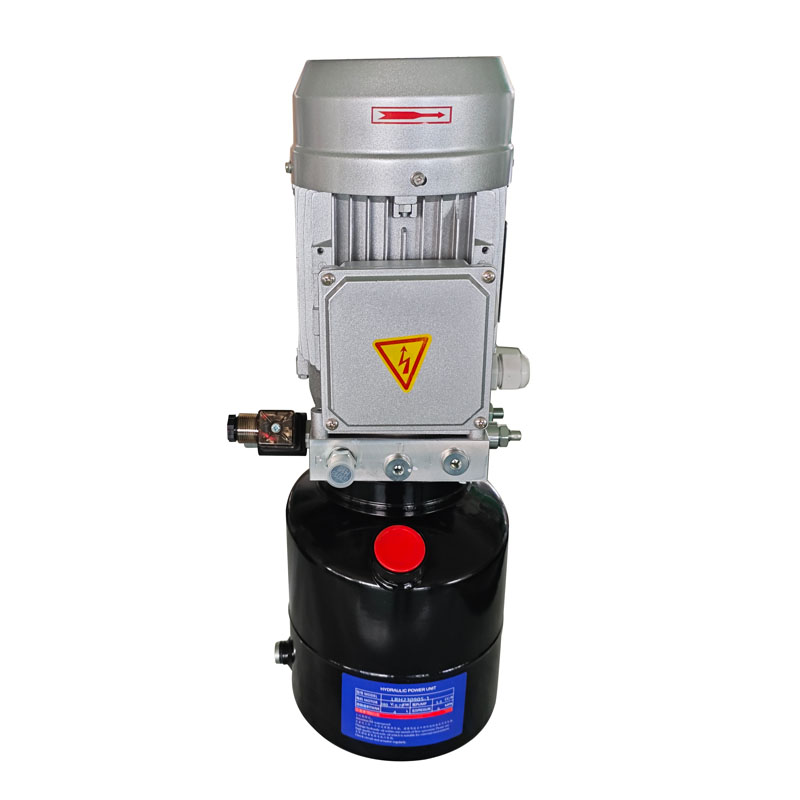

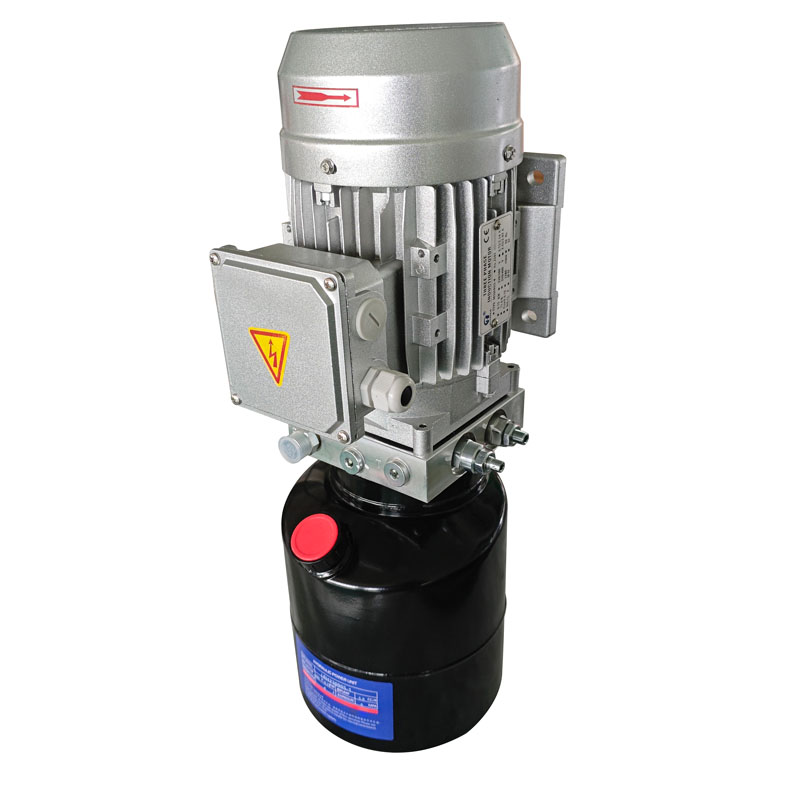

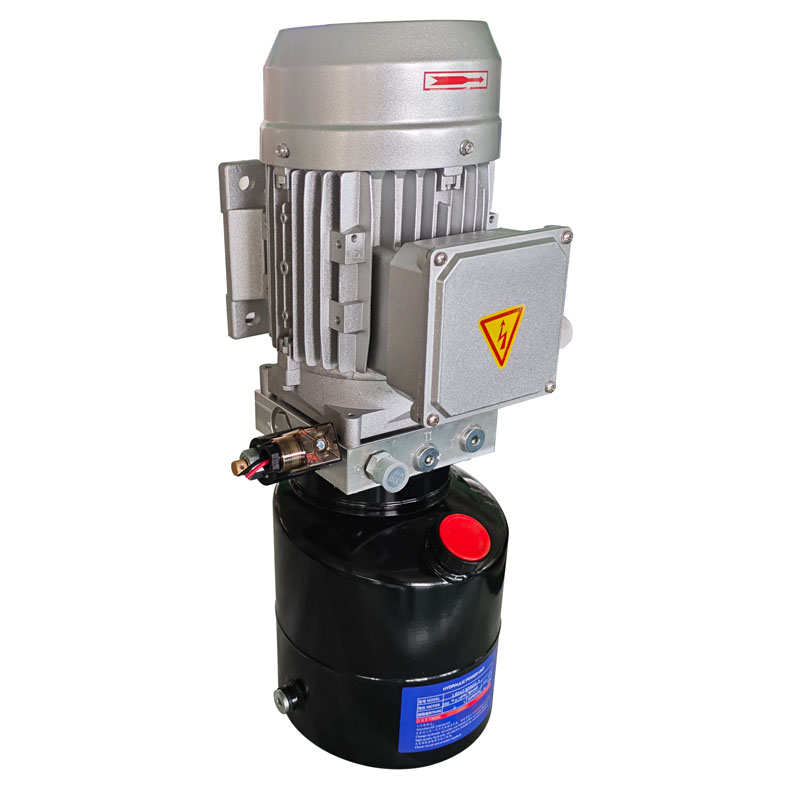

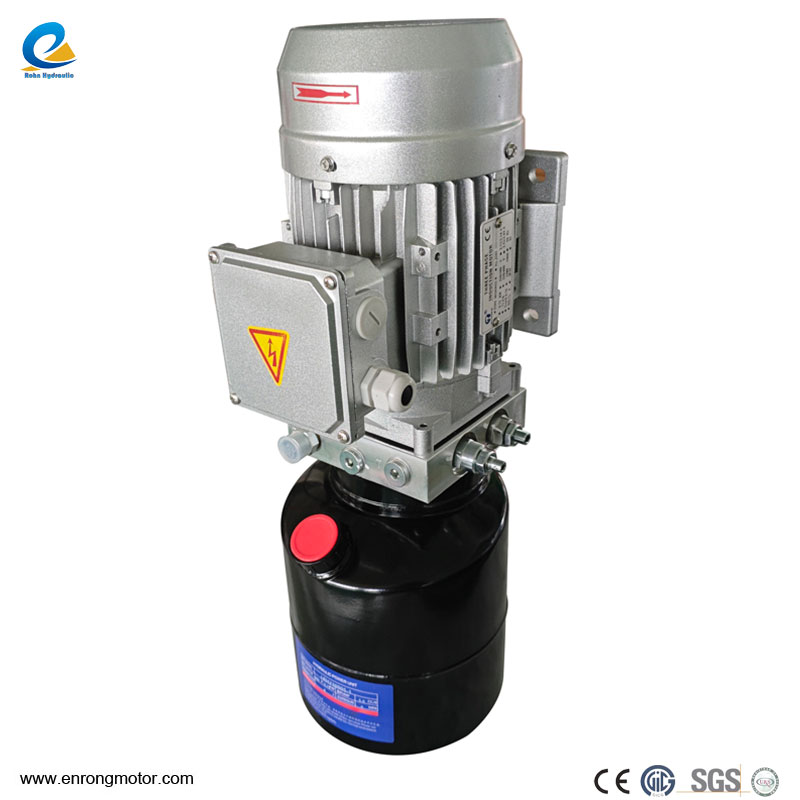

380V 0.75KW Custom Hydraulic Power Unit

ChangZhou Rohn Hydraulic has been operating in the hydraulic industry for over ten years. We are a specialized manufacturer focusing on the research, development, production, sales, and service of hydraulic power units for dump trucks, hydraulic cylinders, hydraulic systems, hydraulic accessories, and sealing actuators. Our skilled team is committed to strict quality control and attentive customer service, always ready to discuss your needs and ensure complete customer satisfaction.

Specifications

1. Electrical Specifications

Voltage: 380V AC

Power Rating: 0.75KW

Frequency: 50/60Hz

Phase: Three-phase

2. Hydraulic Specifications

Pressure Rating: Up to 21Mpa (210 bar)

Flow Rate: 6-8 liters per minute (L/min)

Tank Capacity: 10 liters (customizable based on requirements)

3. Dimensions and Weight

Dimensions (LxWxH): 500mm x 300mm x 400mm (customizable)

Weight: Approximately 30 kg

Performance

1. High Efficiency

The 0.75KW motor is designed for high efficiency, ensuring that the hydraulic power unit delivers optimal performance with minimal energy consumption. This efficiency reduces operational costs and contributes to a lower environmental footprint.

2. Consistent Pressure and Flow

With a maximum pressure rating of 21Mpa, the unit is capable of delivering consistent hydraulic pressure, ensuring reliable operation even under demanding conditions. The flow rate of 6-8 L/min provides adequate hydraulic power for various applications, from industrial machinery to mobile equipment.

3. Durable and Reliable

Constructed with high-quality materials and components, the 380V 0.75KW hydraulic power unit is built to withstand harsh operating environments. Its robust design ensures long-term reliability and reduced maintenance requirements.

Key Features

1. Compact and Lightweight Design

The compact dimensions and lightweight design of the unit make it easy to integrate into existing systems and transport as needed. This versatility is particularly beneficial for mobile applications and installations with limited space.

2. Advanced Filtration System

An integrated advanced filtration system ensures that the hydraulic fluid remains clean and free of contaminants. This system prolongs the lifespan of the hydraulic components and enhances overall system reliability.

3. Customizable Options

To meet specific application requirements, the unit offers various customization options, including:

Pump Types: Gear, vane, or piston pumps depending on the required flow and pressure characteristics.

Tank Size: Customizable tank capacity to ensure adequate hydraulic fluid for specific applications.

Valve Configurations: Different valve configurations can be selected to match the control needs of the application.

Cooling Systems: Optional cooling systems to maintain optimal operating temperatures in high-demand applications.

Applications

The 380V 0.75KW custom hydraulic power unit is suitable for a wide range of applications, including but not limited to:

Industrial Machinery: Powers hydraulic presses, machine tools, and other heavy-duty industrial equipment.

Mobile Equipment: Ideal for mobile hydraulic systems in construction machinery, agricultural equipment, and transport vehicles.

Material Handling: Used in forklifts, pallet jacks, and other material handling equipment to provide reliable hydraulic power.

Automotive Applications: Supports various hydraulic functions in automotive manufacturing and maintenance.

Safety Features

1. Overpressure Protection

The unit is equipped with overpressure protection mechanisms, including pressure relief valves that automatically activate if the system pressure exceeds safe limits. This feature prevents damage to the hydraulic components and ensures safe operation.

2. Temperature Monitoring

Temperature sensors monitor the operating temperature of the hydraulic fluid. If the temperature exceeds safe levels, the system triggers alarms or shuts down to prevent damage and ensure safe operation.

3. Emergency Stop Function

An emergency stop function allows operators to quickly and safely shut down the system in case of an emergency. This enhances the safety of both the equipment and the operators.

Maintenance and Serviceability

1.Easy Access Design

The design of the unit includes strategically placed access points for easy maintenance and servicing. Components can be quickly accessed for inspection, repair, or replacement, minimizing downtime and maintenance costs.

2.Comprehensive Documentation

Each unit comes with detailed documentation, including operation manuals, maintenance guides, and service schedules. This ensures that operators have all the necessary information to keep the unit running smoothly and efficiently.

3.Support and Service

ChangZhou Rohn Hydraulic provides exceptional customer support and service. Our team of experienced technicians is available to assist with installation, troubleshooting, and maintenance, ensuring the hydraulic power unit operates at peak performance.

Certifications and Quality Assurance

The 380V 0.75KW hydraulic power unit is manufactured to the highest quality standards. It has obtained ISO9001 and CE certifications, ensuring it meets stringent international quality and safety standards. Each unit undergoes rigorous testing and quality control checks before leaving the factory, guaranteeing reliable performance and customer satisfaction.

Customization for International Markets

To cater to the specific needs of international markets, the 380V 0.75KW unit can be customized with:

Localized Components: Components that meet local standards and regulations.

Language Options: Documentation and labeling available in multiple languages to facilitate ease of use and compliance with local regulations.

Regional Support: Access to regional support teams for timely assistance and service.

Conclusion

The 380V 0.75KW custom hydraulic power unit is a powerful, reliable, and versatile solution designed to meet the specific requirements of international markets. Its robust construction, advanced features, and high-efficiency performance make it an ideal choice for a wide range of applications. With the ability to customize the unit to specific needs and backed by ChangZhou Rohn Hydraulic's commitment to quality and customer service, this hydraulic power unit offers unmatched value and performance.
