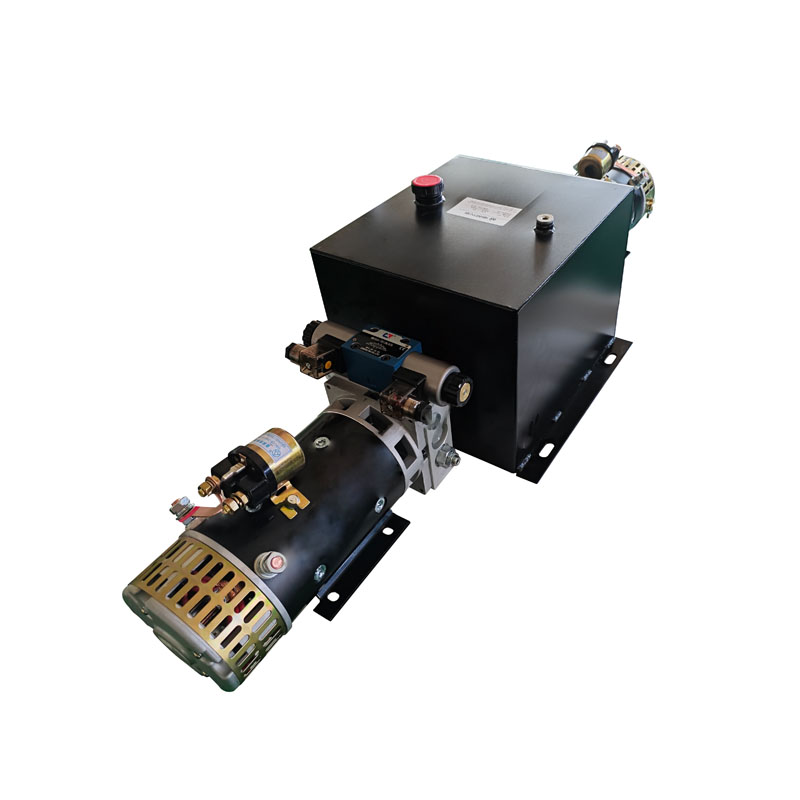

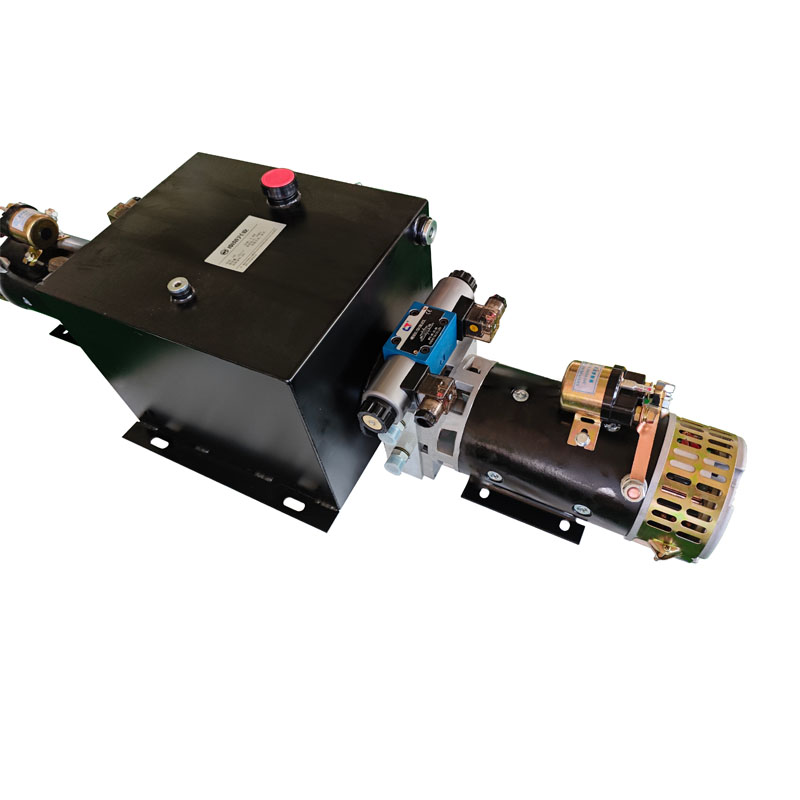

24V 4KW Horizontal Dual-Head Custom Power Unit

The 24V 4KW Horizontal Dual-Head Custom Power Unit is a high-performance hydraulic power solution designed for demanding applications. This unit combines robust construction with advanced features, making it suitable for a variety of industrial uses. This detailed overview covers the performance, specifications, and features of this custom power unit.

Performance

The performance of the 24V 4KW 18MPa 18L 5.8 cc/r Horizontal Dual-Head Custom Power Unit is defined by its ability to deliver consistent and reliable power in challenging environments:

Power Output:

Equipped with a 4KW motor operating at 24V, this unit delivers powerful and efficient hydraulic performance. The motor is designed to handle high-load applications while maintaining energy efficiency.

Pressure Capability:

The unit can operate at pressures up to 18MPa (180 bar), making it suitable for heavy-duty applications that require substantial force and pressure.

Fluid Capacity:

With an 18L hydraulic reservoir, the unit ensures extended operation without the need for frequent refilling. The reservoir is designed to maintain optimal fluid conditions, preventing contamination and ensuring long-term reliability.

Displacement:

The hydraulic pump has a displacement of 5.8 cc/r, which allows for precise control of fluid flow and pressure, enhancing the unit’s performance in applications requiring accurate hydraulic control.

Specifications

The 24V 4KW 18MPa 18L 5.8 cc/r Horizontal Dual-Head Custom Power Unit is built to exacting specifications to meet diverse industrial needs:

Motor:

Type: Electric Motor

Power: 4KW

Voltage: 24V

Efficiency: High-efficiency design with low power consumption

Hydraulic Pump:

Type: Gear/Vane/Piston (customizable based on application)

Displacement: 5.8 cc/rev

Max Pressure: 18MPa (180 bar)

Reservoir:

Capacity: 18 liters

Material: High-strength steel or aluminum alloy with anti-corrosion coating

Design: Integrated filter system and level indicators to prevent contamination

Control System:

Type: PLC-based or relay logic (customizable)

Interface: Digital display, manual controls, or remote control options

Sensors: Pressure, temperature, and flow sensors for real-time monitoring and adjustments

Cooling System:

Type: Air-cooled or water-cooled (customizable)

Capacity: Designed to maintain optimal operating temperature under continuous load

Features

The 24V 4KW 18MPa 18L 5.8 cc/r Horizontal Dual-Head Custom Power Unit comes with several features that enhance its functionality and usability:

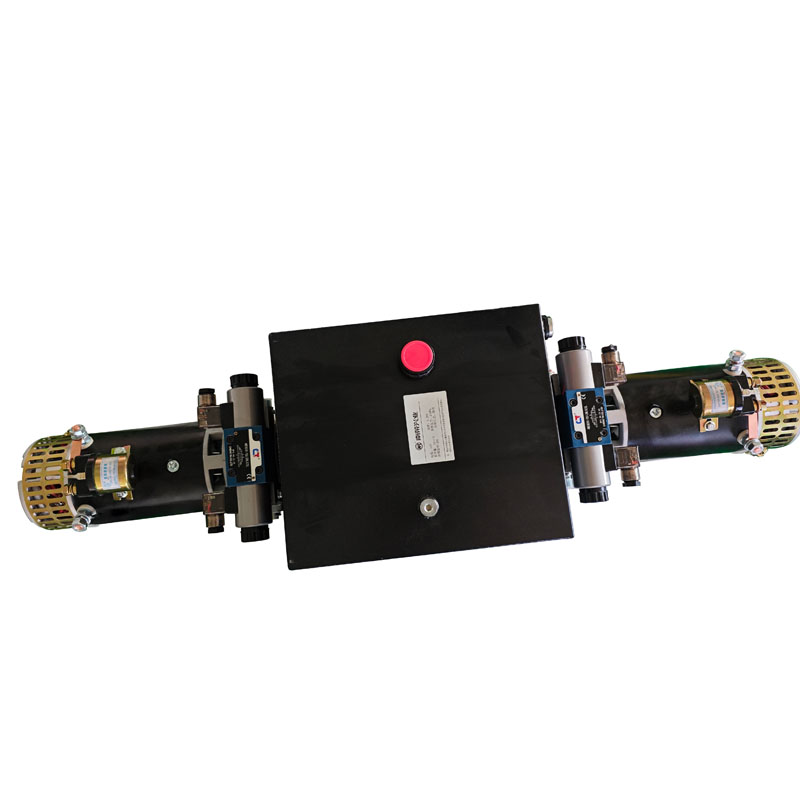

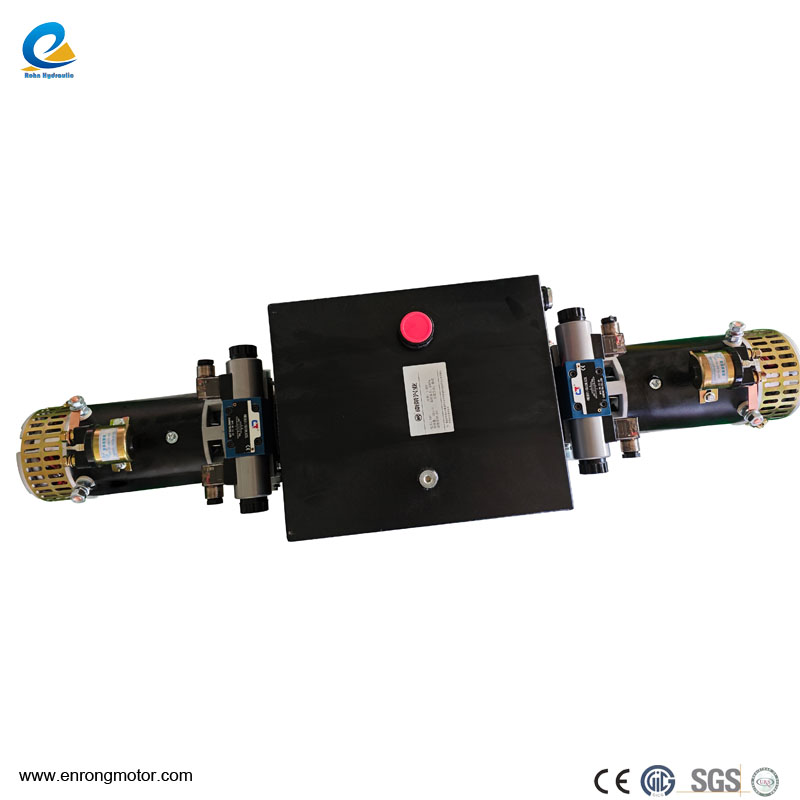

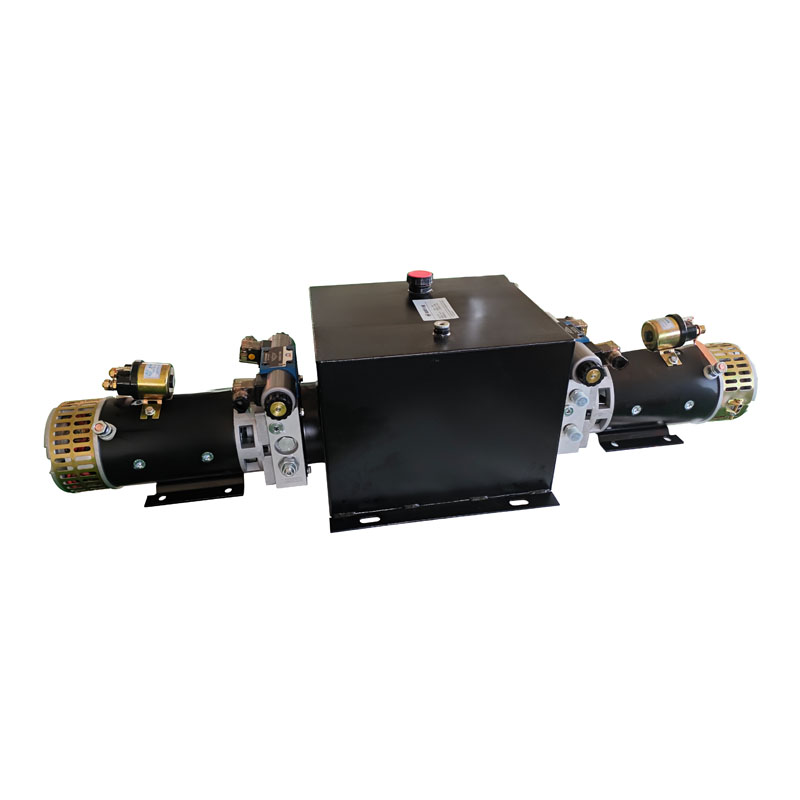

Dual-Head Design:

The dual-head configuration allows for simultaneous operation of two hydraulic circuits, increasing versatility and efficiency in applications requiring multiple hydraulic outputs.

Horizontal Orientation:

The horizontal design provides stability and ease of installation, making it suitable for various mounting configurations in industrial settings.

Customizability:

The unit can be customized to meet specific requirements, including different pump types, motor configurations, control systems, and cooling options. This flexibility ensures that the unit can be tailored to fit unique operational needs.

Advanced Control:

The integration of advanced control systems, including PLC and relay logic, allows for precise control of hydraulic parameters. Digital displays and remote control options further enhance user interaction and control.

Durability and Reliability:

Built with high-quality materials and components, the unit is designed to withstand harsh industrial environments. Features such as anti-corrosion coatings, integrated filters, and robust construction ensure long-term reliability and minimal maintenance.

Safety Features:

The unit includes safety features such as pressure relief valves, overload protection, and emergency stop functions to ensure safe operation under various conditions.

Applications

The 24V 4KW 18MPa 18L 5.8 cc/r Horizontal Dual-Head Custom Power Unit is suitable for a wide range of applications, including:

Industrial Machinery:

Powering presses, lifts, and other heavy machinery that require high-pressure hydraulic power.

Construction Equipment:

Used in equipment like excavators, loaders, and cranes that need reliable hydraulic power for lifting and moving heavy loads.

Automotive Industry:

Provides hydraulic power for automotive manufacturing processes, such as assembly lines and testing equipment.

Agricultural Machinery:

Powers hydraulic systems in tractors, harvesters, and irrigation systems, enhancing the efficiency of agricultural operations.

Marine Applications:

Suitable for hydraulic systems in ships and offshore platforms, providing reliable power for steering, winches, and other marine equipment.

Conclusion

The 24V 4KW 18MPa 18L 5.8 cc/r Horizontal Dual-Head Custom Power Unit is a versatile and high-performance hydraulic solution. Its robust design, advanced features, and customization options make it an ideal choice for various industrial applications. Whether you need reliable power for heavy machinery, precision control for manufacturing processes, or durability for harsh environments, this custom power unit delivers exceptional performance and reliability.
