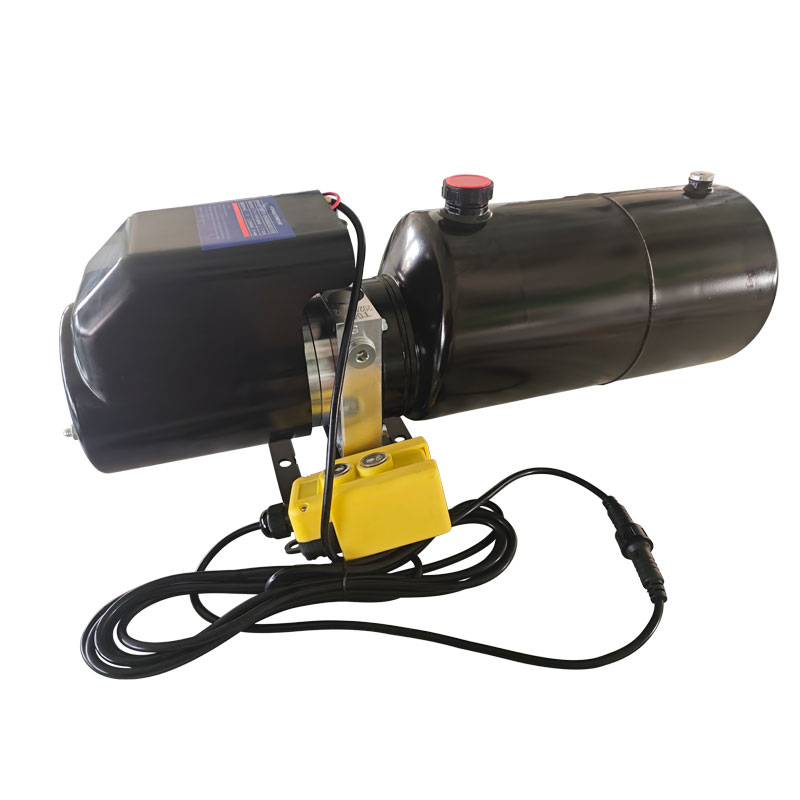

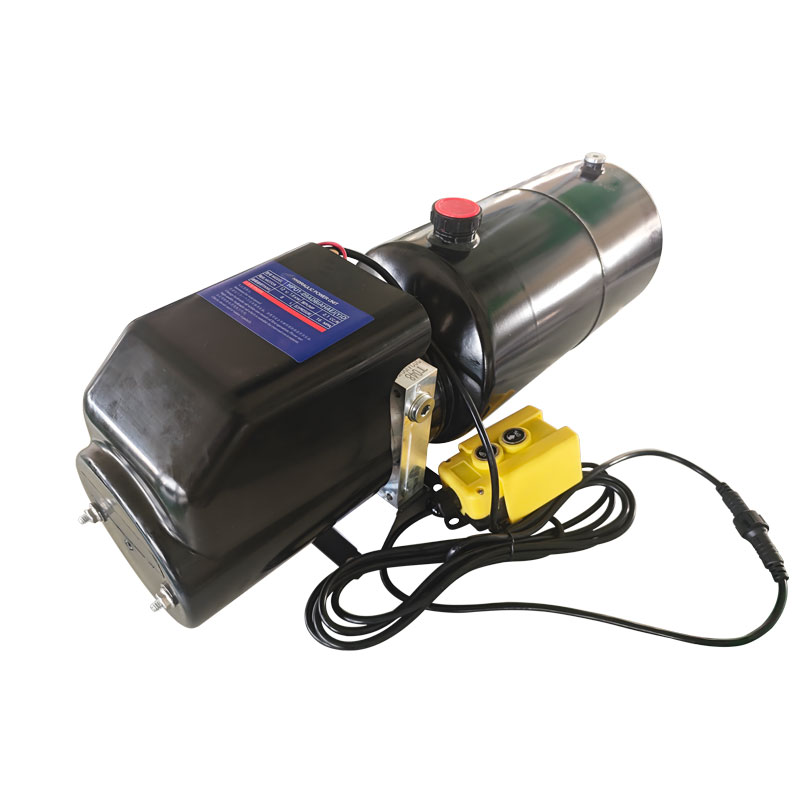

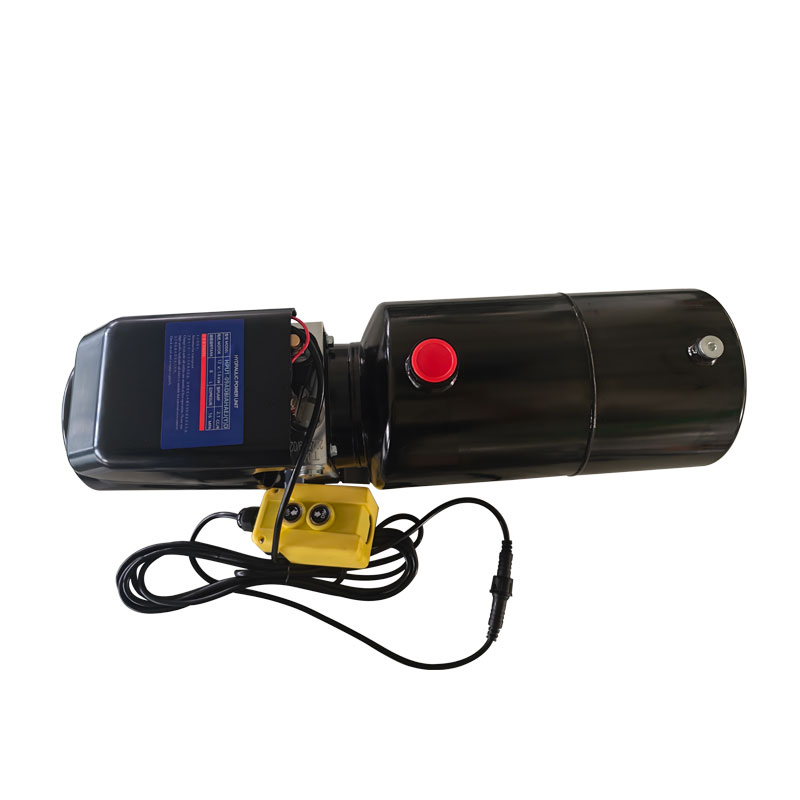

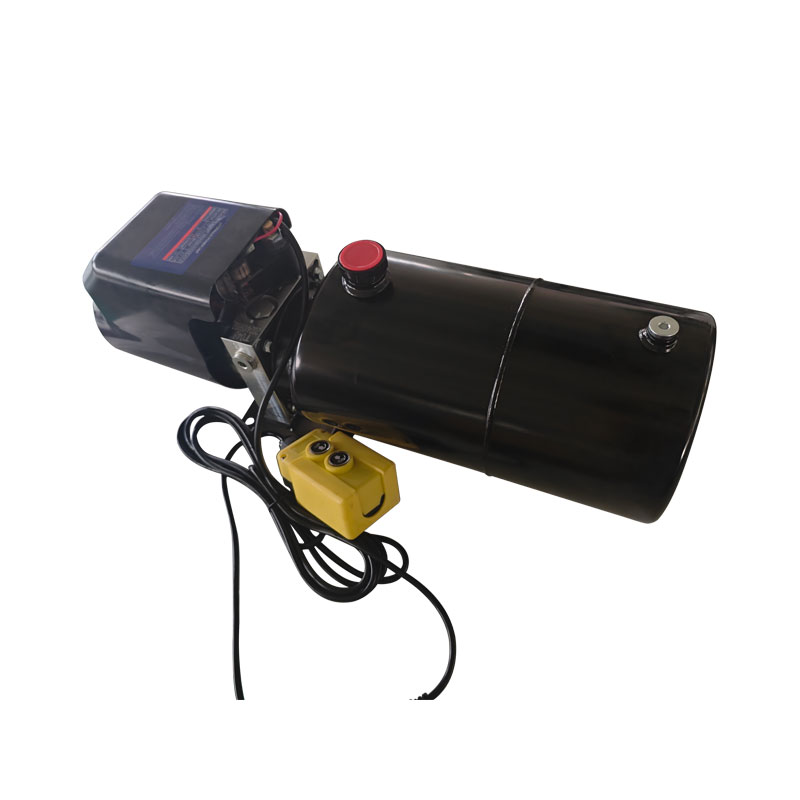

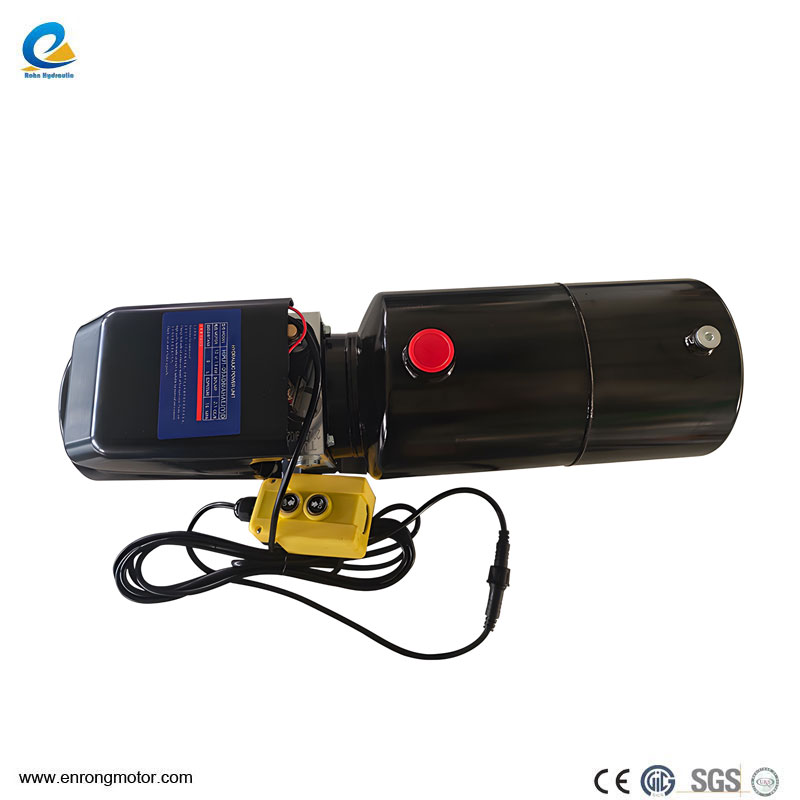

12V 1.6KW 8L Single Acting with Wire Control

The 12V 1.6KW 8L single-acting hydraulic power unit with wire control is a high-performance hydraulic system designed to meet the demands of various industrial applications. This particular unit combines advanced technology with robust design, making it suitable for multiple uses in sectors that require reliable and efficient hydraulic power. The unit is equipped with several key features that make it an ideal choice for customers looking for durability, ease of use, and versatility in a single package.

Performance and Power Output

At the heart of this hydraulic power unit is its 12-volt DC motor, rated at 1.6 kW, which provides a powerful and consistent energy source to drive hydraulic operations. The motor's design ensures optimal performance under various conditions, making it capable of handling both light and medium-duty tasks with ease. With a pressure rating of 21 MPa (megapascals), this power unit is capable of producing the high-pressure output necessary for lifting, pressing, or pushing operations.

The system operates on a single-acting hydraulic circuit, meaning it supplies pressurized fluid to extend the cylinder, and the retraction is typically achieved by a return spring or gravity, depending on the application. This single-acting configuration makes the unit more energy-efficient for applications where only a single direction of force is required.

The inclusion of wire control offers enhanced convenience and safety, allowing the operator to manage the hydraulic power unit from a distance. This feature is especially useful in environments where manual operation of the hydraulic system would be unsafe or difficult.

Key Features

1. Robust Motor

The 12V motor is designed to provide consistent and high-quality performance, suitable for various tasks requiring hydraulic power. The motor’s low-voltage design makes it compatible with a wide range of mobile applications, such as vehicles, trailers, and portable equipment. Despite being compact, the motor delivers high torque, ensuring the unit performs effectively even under demanding conditions.

2. High-Pressure Capability

Operating at a maximum pressure of 21 MPa, the hydraulic power unit is designed to generate the force necessary to handle a wide array of hydraulic tasks. Whether lifting heavy loads, pressing components into place, or powering specific industrial machines, this unit provides the force required to get the job done efficiently.

3. Efficient Single-Acting System

The single-acting hydraulic system is ideal for applications where hydraulic force is only needed in one direction. This design makes the unit simpler and more efficient compared to double-acting systems, which require fluid in both directions of movement. The single-acting nature of this unit reduces energy consumption and minimizes wear and tear on components.

4. Large 8L Hydraulic Reservoir

With an 8-liter hydraulic oil reservoir, the power unit is capable of storing a significant amount of hydraulic fluid. This larger reservoir helps in dissipating heat effectively, ensuring the hydraulic oil maintains optimal temperature and viscosity during extended periods of use. The tank's design also allows for easy refilling and maintenance, ensuring that the unit remains in peak operating condition over time.

5. Wire-Controlled Operation

The wire control feature adds an additional layer of usability and safety. Operators can manage the power unit from a safe distance, which is particularly important in scenarios where the equipment is used in potentially hazardous environments. Wire control also allows for more precise operation, especially when dealing with delicate or complex tasks where manual control might lead to errors or accidents.

6. Horizontal Mounting Design

The unit is designed for horizontal mounting, making it versatile and easy to install in a variety of positions and locations. Whether used in a stationary or mobile application, the horizontal mounting ensures stability and ease of access for maintenance and operation.

7. Durable Construction

Built with high-quality materials, the hydraulic power unit is designed to withstand harsh working environments. Whether exposed to fluctuating temperatures, dust, or moisture, the unit’s robust construction ensures longevity and reliability. The casing and components are engineered to resist corrosion and wear, making the system suitable for both indoor and outdoor applications.

Applications

The 12V 1.6KW 8L single-acting hydraulic power unit is versatile and can be applied across a wide range of industries and tasks. Some of the most common applications include:

1. Automotive and Mobile Equipment

This hydraulic power unit is ideal for use in automotive applications, such as car lifts, tow trucks, and dump trailers. The 12V motor allows it to be powered by standard automotive electrical systems, making it a practical choice for mobile applications. It is particularly useful in dump trailers where the hydraulic system is used to raise and lower the trailer bed, offering smooth and controlled operation.

2. Agricultural Machinery

In agriculture, hydraulic systems play a crucial role in operating various types of machinery, such as sprayers, seeders, and harvesters. This single-acting hydraulic power unit provides the force needed to lift, lower, or tilt machinery components, helping farmers improve productivity and efficiency. Its wire control feature allows operators to manage equipment from a safe distance, reducing the risk of injury during operation.

3. Construction Equipment

Construction sites often require hydraulic systems to power heavy equipment like scissor lifts, concrete cutters, and small cranes. This hydraulic power unit’s compact size and robust performance make it an excellent choice for mobile construction equipment, ensuring that hydraulic power is readily available for lifting, pressing, or moving heavy materials.

4. Industrial Machinery

The unit is also suitable for various industrial applications, such as presses, compactors, and material handling equipment. Its high-pressure output and reliable motor make it capable of handling the demanding needs of industrial machinery that relies on consistent hydraulic power.

5. Marine Applications

Hydraulic systems are essential in marine applications for tasks such as steering, lifting, or operating winches and cranes. This hydraulic power unit’s durable construction and corrosion-resistant materials make it well-suited for use in marine environments, where exposure to moisture and saltwater can be a concern.

6. Waste Management

In waste management systems, hydraulic power units are commonly used in compactors and balers to process and compress waste materials. The single-acting configuration of this power unit allows for smooth and efficient operation in waste handling equipment, where high force is required to compact materials into dense forms.

Ease of Maintenance

One of the standout features of this hydraulic power unit is its ease of maintenance. The design of the 8L reservoir allows for straightforward fluid checks and refills, and the motor and other components are easily accessible for routine inspections and repairs. This ensures that the unit can be kept in optimal working condition with minimal downtime. Additionally, the wire control system adds another layer of operational ease, as it minimizes the need for manual intervention.

Safety and Reliability

Safety is a primary concern in any hydraulic system, and this unit is no exception. The inclusion of wire control reduces the need for operators to be physically close to the machinery during operation, lowering the risk of injury. The system is also equipped with safety features to prevent overloading and ensure consistent pressure output. This makes it a reliable and safe option for both industrial and mobile hydraulic applications.

Conclusion

The 12V 1.6KW 8L single-acting hydraulic power unit with wire control is a versatile and powerful solution for a wide range of hydraulic applications. Its robust motor, high-pressure capability, and durable construction make it suitable for industries such as automotive, agriculture, construction, and marine. The wire control feature enhances safety and ease of use, while the efficient single-acting system ensures reliable performance in operations that require unidirectional force. With its ability to meet the demands of various industries and applications, this hydraulic power unit offers an exceptional balance of performance, durability, and user-friendly operation.
