380V 3KW 12L Single-Acting 2P Enhanced Version Hydraulic Power Unit

Our commitment to quality and compliance is demonstrated by our ISO9001, CE, and 16949 certifications. We welcome both OEM and ODM orders, providing the flexibility to select from our existing product range or to seek customized engineering solutions for specific applications. Our customer service center is always available to discuss and address your procurement needs.

We encourage you to reach out for more information about our products and to schedule a visit to our factory.

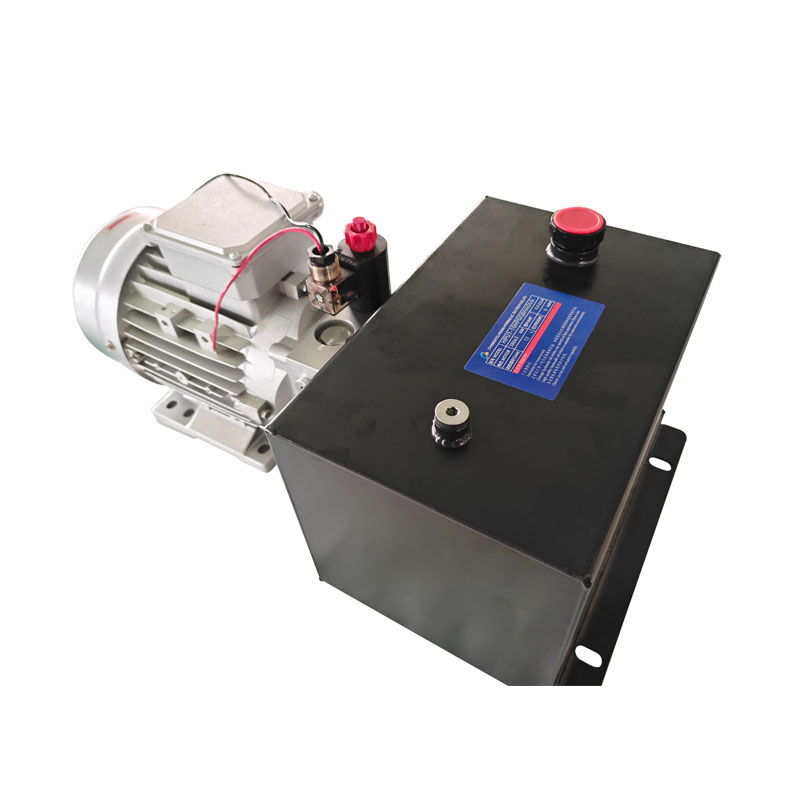

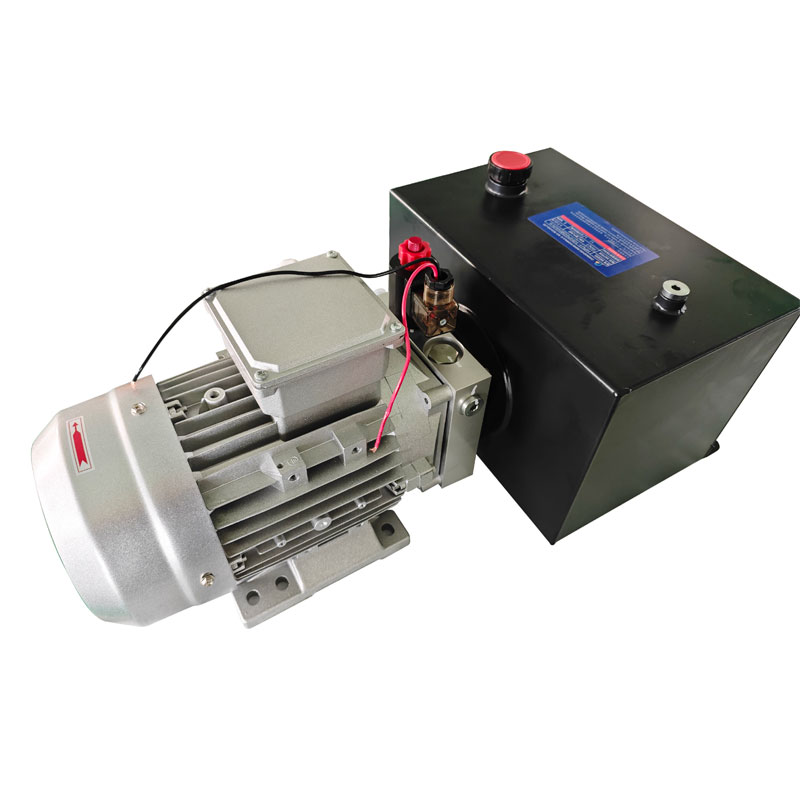

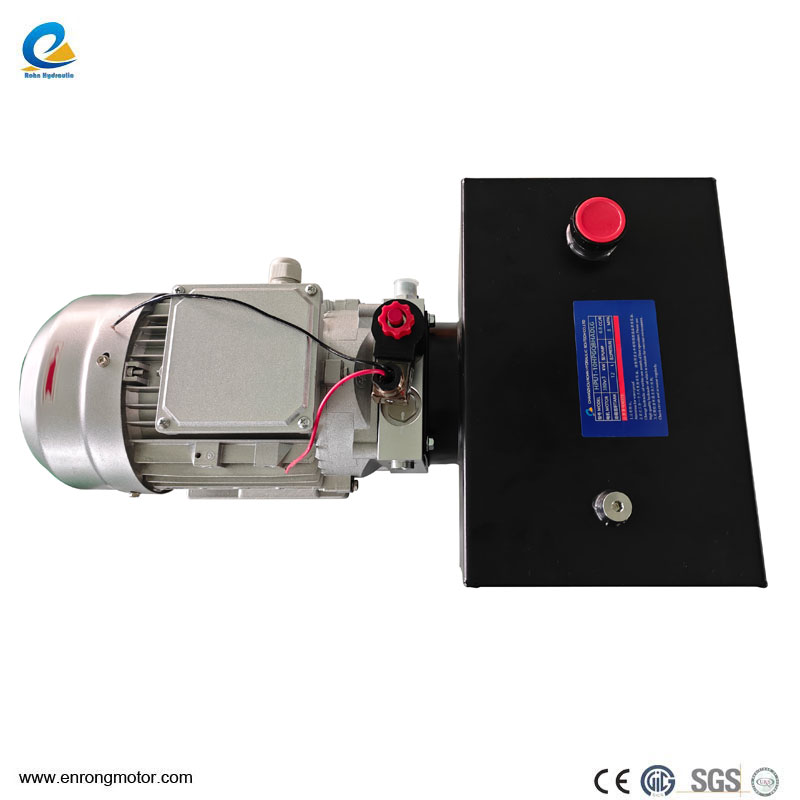

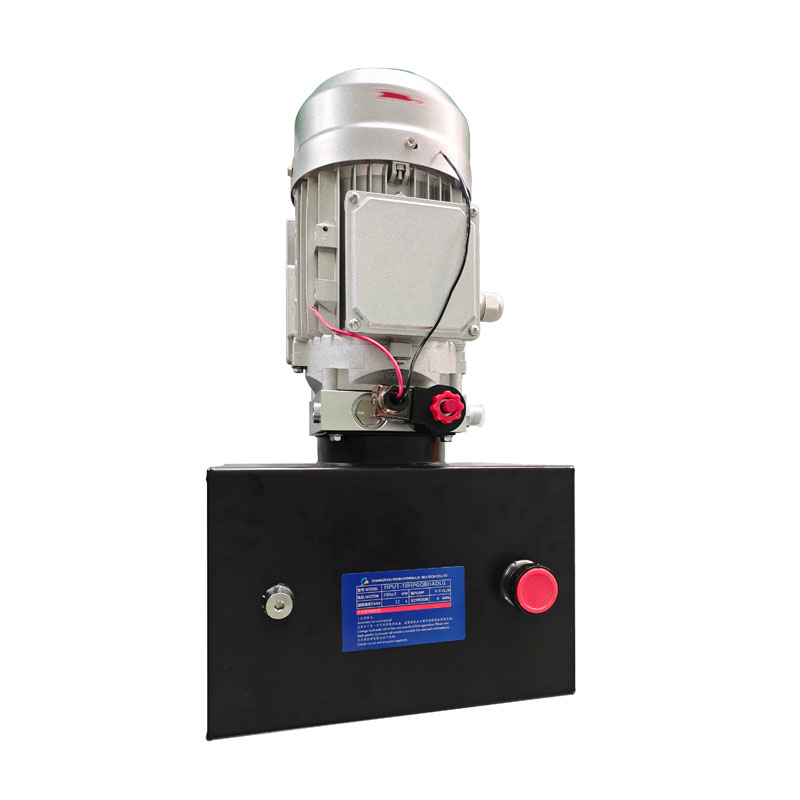

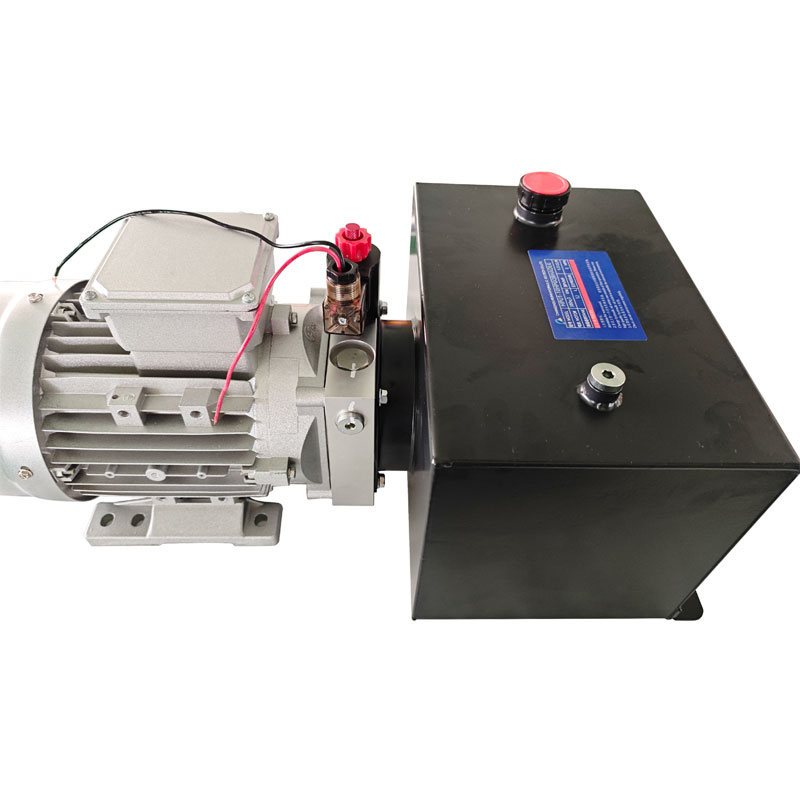

Custom Hydraulic Power Unit: 380V 3KW 12L Single-Acting (2P) Enhanced Version, 6.8cc/r, 8MPa, Horizontal

Overview:

The 380V 3KW 12L Single-Acting (2P) Enhanced Version hydraulic power unit is a robust and versatile solution designed to meet the demanding requirements of various industrial and mobile hydraulic applications. This custom-built unit stands out due to its superior performance, reliable operation, and enhanced features, making it suitable for tasks that require high efficiency and precision. Below is a detailed exploration of its performance characteristics, product specifications, and potential applications.

Product Performance:

Power and Efficiency:

Motor Power: 3KW, providing substantial force and operational efficiency for demanding tasks.

Voltage: 380V, suitable for industrial applications with stable and high power requirements.

Pump Displacement: 6.8cc/r, ensuring efficient fluid transfer and consistent performance.

Maximum Pressure: 8MPa, enabling the unit to handle high-pressure applications with ease.

Operation:

Single-Acting (2P): Designed for single-acting cylinders, the unit facilitates controlled extension while relying on an external force or gravity for retraction.

Enhanced Version: Built with reinforced components for increased durability and longevity, capable of withstanding rigorous operating conditions.

Efficiency and Control:

Flow Rate: Optimized for steady and reliable fluid movement, ensuring smooth operation of hydraulic systems.

Pressure Regulation: Equipped with advanced pressure control mechanisms to maintain consistent pressure, protecting both the unit and connected hydraulic components.

Orientation:

Horizontal Design: The horizontal configuration of the unit allows for easy installation and integration into existing systems, providing flexibility in space-constrained environments.

Product Specifications:

Motor:

Power: 3KW

Voltage: 380V

Phase: Three-phase (2P)

Frequency: 50Hz/60Hz (customizable)

Hydraulic Pump:

Type: Gear pump

Displacement: 6.8cc/r

Maximum Pressure: 8MPa

Reservoir:

Capacity: 12L

Material: High-grade steel with anti-corrosion coating

Design: Horizontal with integrated baffles to minimize fluid turbulence

Hydraulic Circuit:

Type: Single-acting

Valves: High-quality directional control valves

Filtration: Built-in filters to ensure clean hydraulic fluid

Additional Features:

Enhanced sealing systems to prevent leaks

Temperature control mechanisms to prevent overheating

Noise reduction features for quieter operation

Applications:

The 380V 3KW 12L Single-Acting (2P) Enhanced Version hydraulic power unit is ideal for a wide range of applications, including:

Industrial Machinery:

Press machines

Injection molding machines

Metal forming equipment

Mobile Equipment:

Construction machinery

Agricultural machinery

Material handling equipment

Automotive:

Car lifts

Hydraulic jacks

Vehicle service equipment

Marine:

Deck machinery

Boat lifts

Steering systems

Aerospace:

Aircraft maintenance equipment

Ground support systems

Usage Instructions:

Installation:

Position the unit horizontally on a stable, level surface.

Ensure all connections are secure and leak-free.

Connect the unit to a 380V power supply and verify the electrical connections meet safety standards.

Operation:

Fill the reservoir with the recommended hydraulic fluid, ensuring it meets the required specifications.

Bleed the system to remove any air pockets that may hinder performance.

Adjust the pressure settings according to the requirements of the connected hydraulic components.

Use the control valves to operate the single-acting cylinder, extending it as needed and allowing for retraction via external force or gravity.

Maintenance:

Regularly check fluid levels and top up as necessary.

Inspect and clean the filters to maintain fluid cleanliness and system efficiency.

Conduct periodic inspections of all seals, hoses, and connections to prevent leaks.

Monitor the temperature and ensure adequate cooling to avoid overheating.

Safety Precautions:

Always follow manufacturer guidelines and safety standards during installation and operation.

Ensure the power supply is disconnected before performing any maintenance or adjustments.

Wear appropriate personal protective equipment (PPE) to safeguard against potential hazards.

Conclusion:

The 380V 3KW 12L Single-Acting (2P) Enhanced Version hydraulic power unit is a reliable and efficient solution for various industrial and mobile hydraulic applications. Its robust design, high performance, and customizable features make it an ideal choice for tasks requiring precise and powerful hydraulic action. With proper installation, operation, and maintenance, this unit will deliver consistent and reliable performance, ensuring the smooth operation of your hydraulic systems.
